VERY SIMILAR TO NITTO EPTSEALER EE1000 SERIES ( THE MOST POPULAR PRODUCT ITEM )
> OPEN CELL EPDM /SEMI CLOSED CELL
Foam sealing material with superior resistance to weather, cold, heat and chemicals.
> CASIS ATRIES foam sealing material to fill cavities of various types of equipment,
consisting of EPDM synthetic rubber foam with a semi-closed cell structure. Higher
compression foams are available for variouspurposes such as waterproof,windproof,
dust-proof, soundproof, or thermal insulation according to the compression ratio.

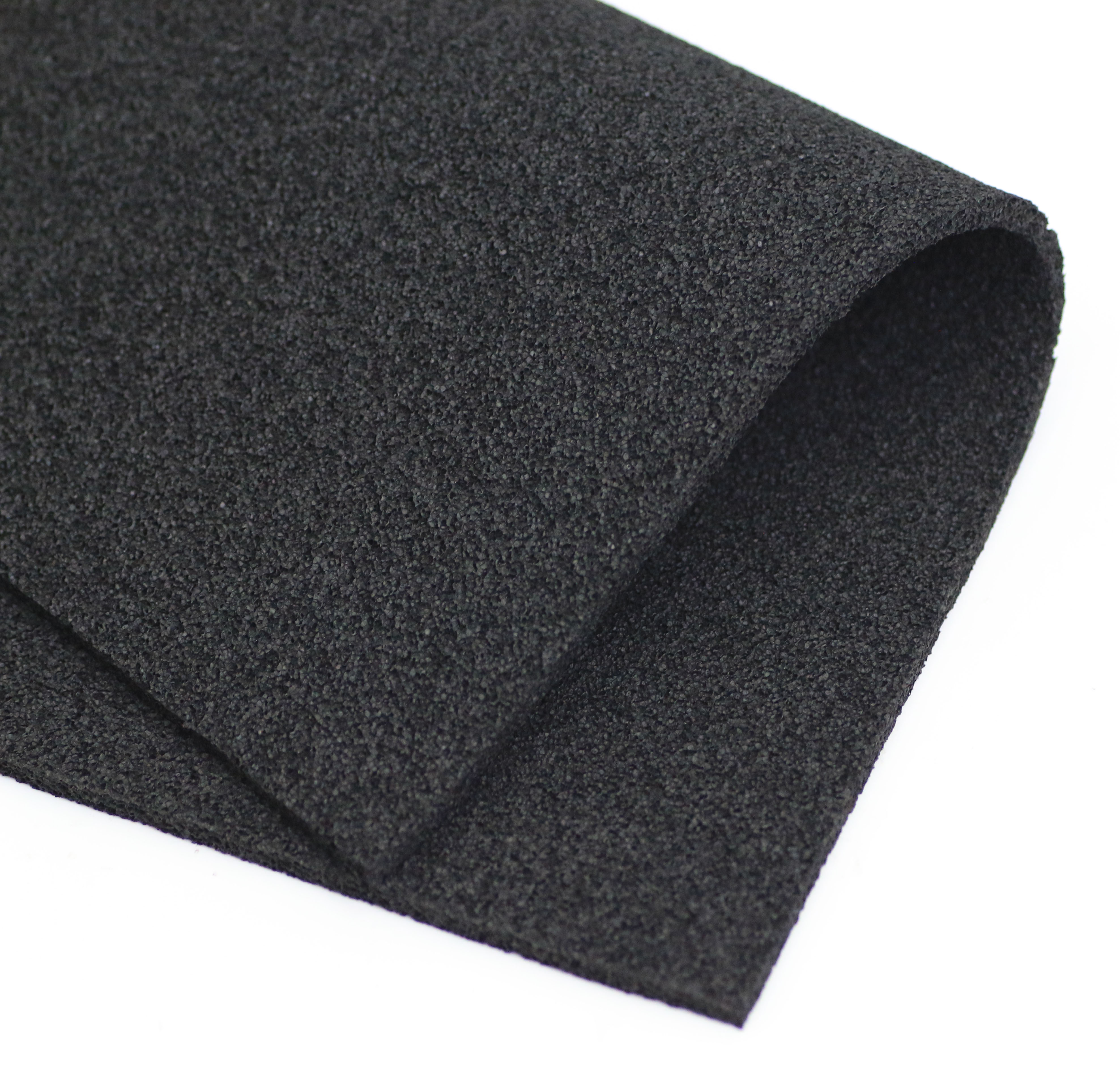

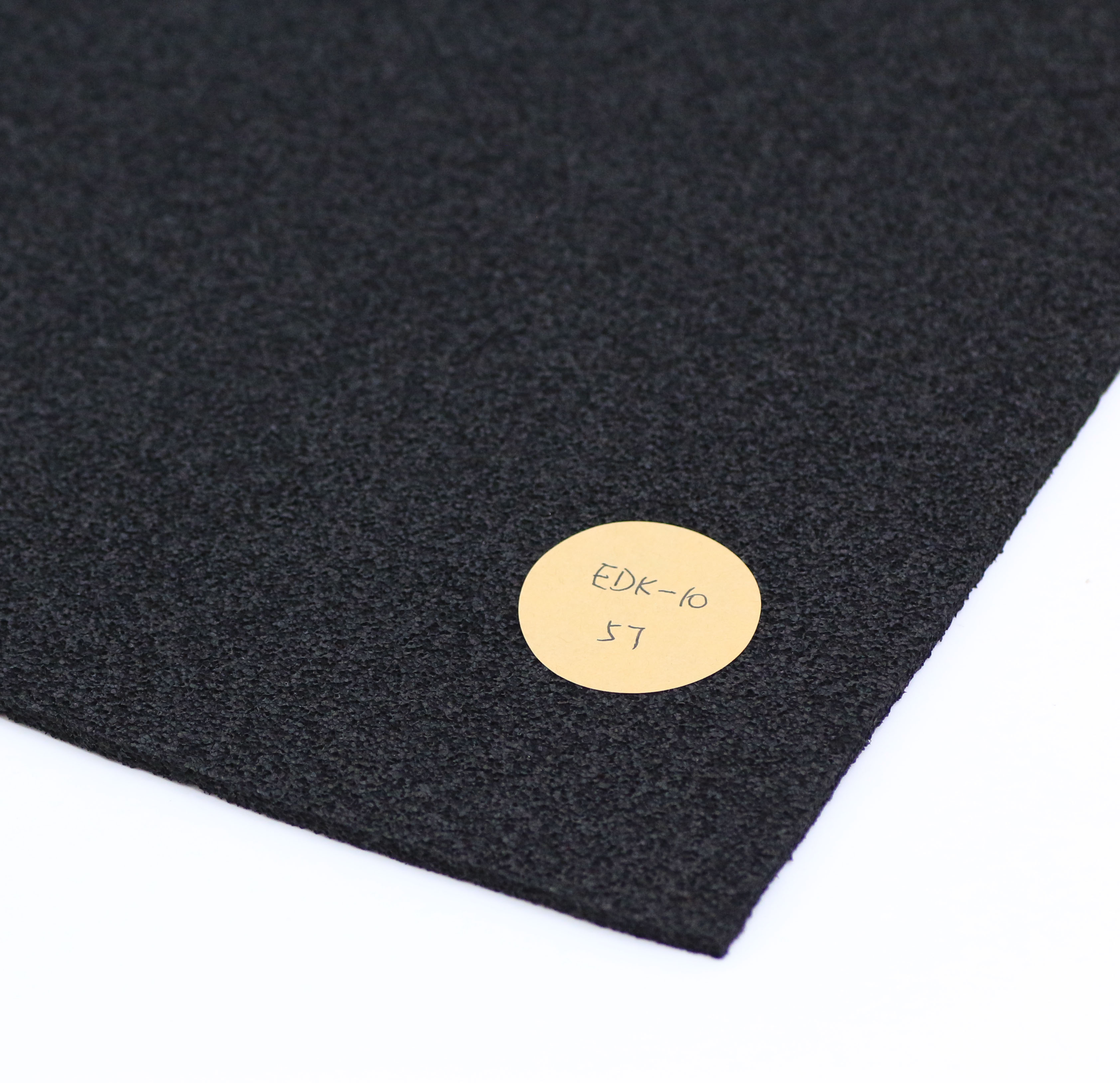

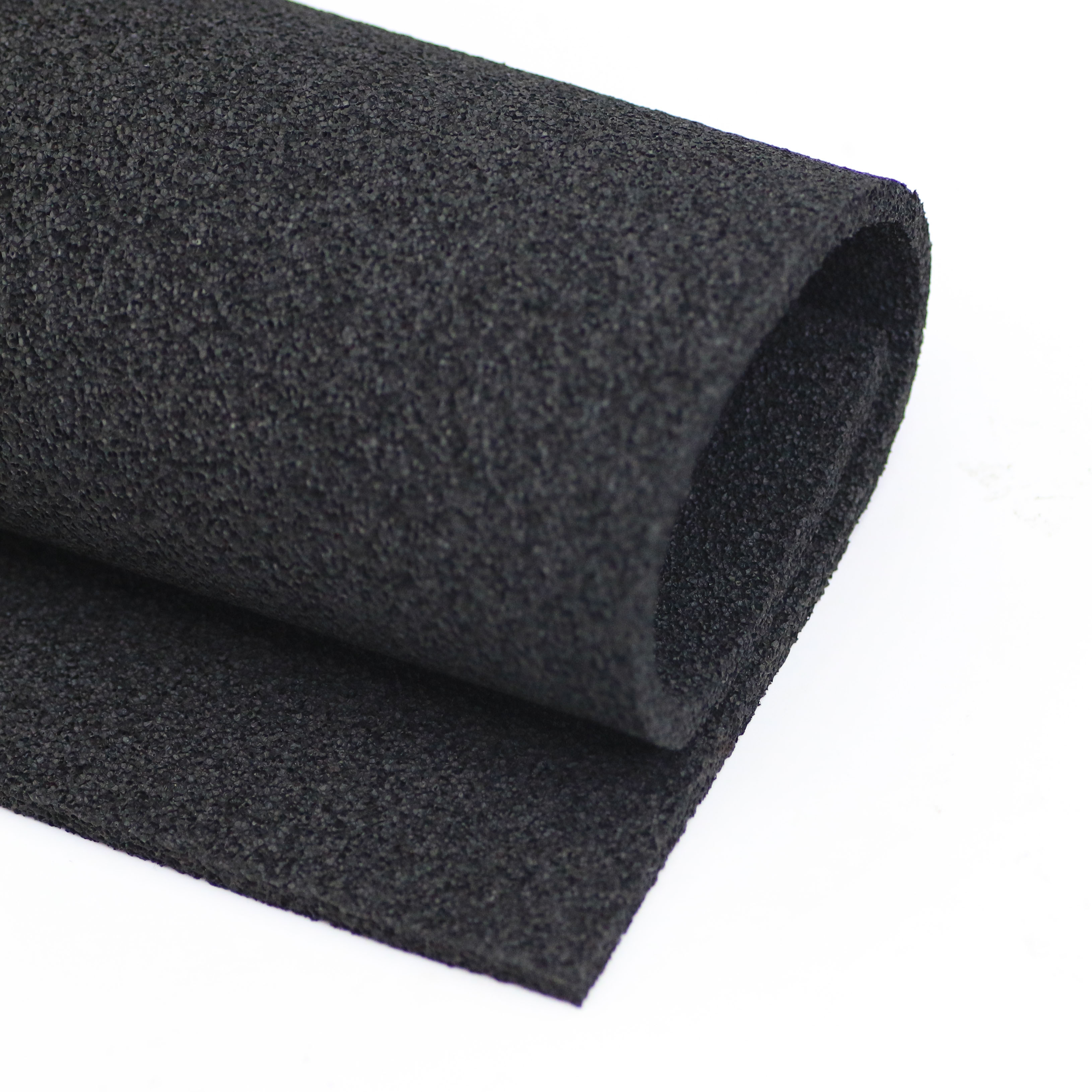

EDK-10 EPDM FOAM RUBBER
SPECIFICATION
MULTI PURPOSE EPDM
Multipurpose open cell/Semi Closed Cell EPDM
Standard grade
Excellent ageing resistance
Density: 90±20 Kg/M³
Roll products can be provided (10,000mm)
Max thickness of block products up to more than 90mm with skin
Application specific details:
> Water-proofing, air sealing, soundproofing and thermal insulation for air conditioners and air cleaners.
> For mounting of cowl louvers.
> For mounting of center pillars.
> For mounting of mirrors.
> Sealing material for end rail.
> Airproof/waterproof packing between sills and footings.
> Sealing material for roof tile (ridge, verge, and valley).
The biggest difference from NITTO:
CASIS can provide thicker product thickness than NITTO. Just due to this feature, customers can enjoy more product utilization rate. EDK-10 series can reach to 65-75mm thickness without skin.
Basic physical performance:
Cell state: Open cell / Semi closed cell
Density：90±20 Kg/M³
Tensile strength: ≥ 80 KPa
Temperature range: -40℃ to 110℃
Maximum Size: 1000 x 10000 x 75mm+ without skin. (Standard)
Max thickness of block products up to more than 90mm with skin
Pure EPDM
Superior durability and weather-resistance, cold/heat test (-40°C to 110°C), and chemical resistance (acids and alkalis).
As compressive load (stress) is small, it will not deform the structure after filling in joints. Easy to compress and apply.
Low specific gravity of 0.095; Application and preservation easy as foam pieces do not fuse together.
Please refer to the download center for getting the specific physical performance data for this product item.
